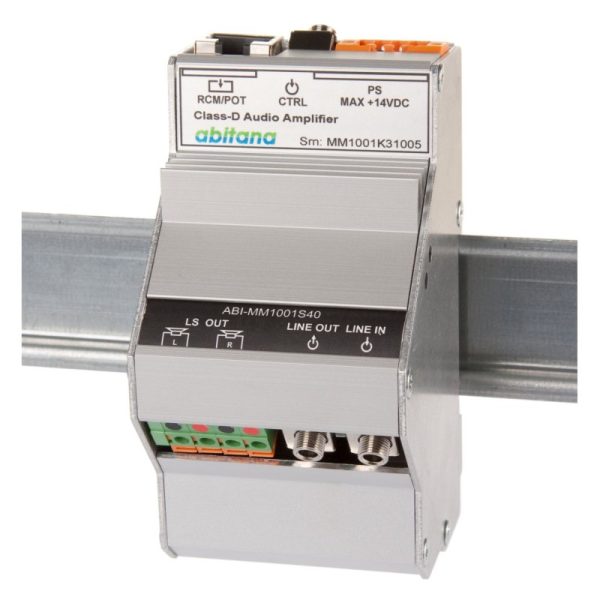

Abitana, Home Control DIN-rail Stereo amplifier 2x20W RMS class D (ABI-MM1001S40)

209,00

Category:

The 2x20W RMS stereo Class D audio power amplifier provides Class AB amplifier performance with Class D efficiency. This device works from a single 14VDC or battery supply, has click-and-pop suppression as well as short-circuit and thermal protection.
The amplifier has a direct line level audio input and output on front side 3,5mm stereo jacks. Loudspeakers are connected via spring-loaded contacts on the front.
The device can be connected to a music source via the cabled network and audio adapters ABI-MM1009S00, or directly to a music source on it’s stereo jack input. The gain and mute of the amplifier can be controlled either by an external volume control potentiometer (ABI-MM1005Sxx or ABI-MM1045Sxx) or by a 0-10V or 1-10V home automation control signal from any of the popular brands / standards.

Required power supply: ABI-PS1003S00

Compatible with 0-10V or 1-10V control systems of
KNX, Domintell, Luxom, Velleman, Niko HC, SmartHouse, Control4, Q-Bus, MyHome and many more.

Compatible with Media Players that feature a standard line-level output (Sonos Connect, Chromecast Audio, Airport Express,…) and most portable audio devices (iPod, smartphone, tablet,…).

Description

Description

The 2x20W RMS stereo Class D audio power amplifier provides Class AB amplifier performance with Class D efficiency. This device works from a single 14VDC or battery supply, has click-and-pop suppression as well as short-circuit and thermal protection.
The amplifier has a direct line level audio input and output on front side 3,5mm stereo jacks. Loudspeakers are connected via spring-loaded contacts on the front.
The device can be connected to a music source via the cabled network and audio adapters ABI-MM1009S00, or directly to a music source on it’s stereo jack input. The gain and mute of the amplifier can be controlled either by an external volume control potentiometer (ABI-MM1005Sxx or ABI-MM1045Sxx) or by a 0-10V or 1-10V home automation control signal from any of the popular brands / standards.

Required power supply: ABI-PS1003S00

Compatible with 0-10V or 1-10V control systems of
KNX, Domintell, Luxom, Velleman, Niko HC, SmartHouse, Control4, Q-Bus, MyHome and many more.

Compatible with Media Players that feature a standard line-level output (Sonos Connect, Chromecast Audio, Airport Express,…) and most portable audio devices (iPod, smartphone, tablet,…).
